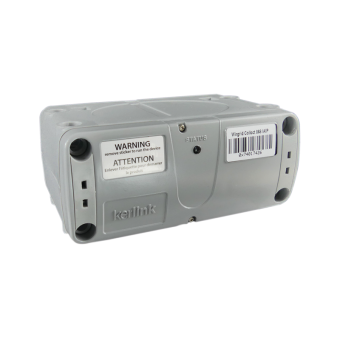

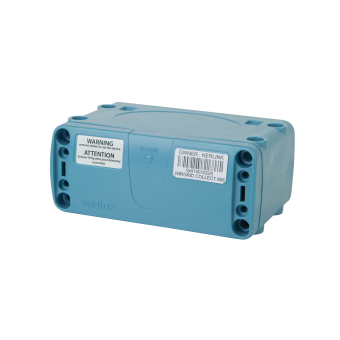

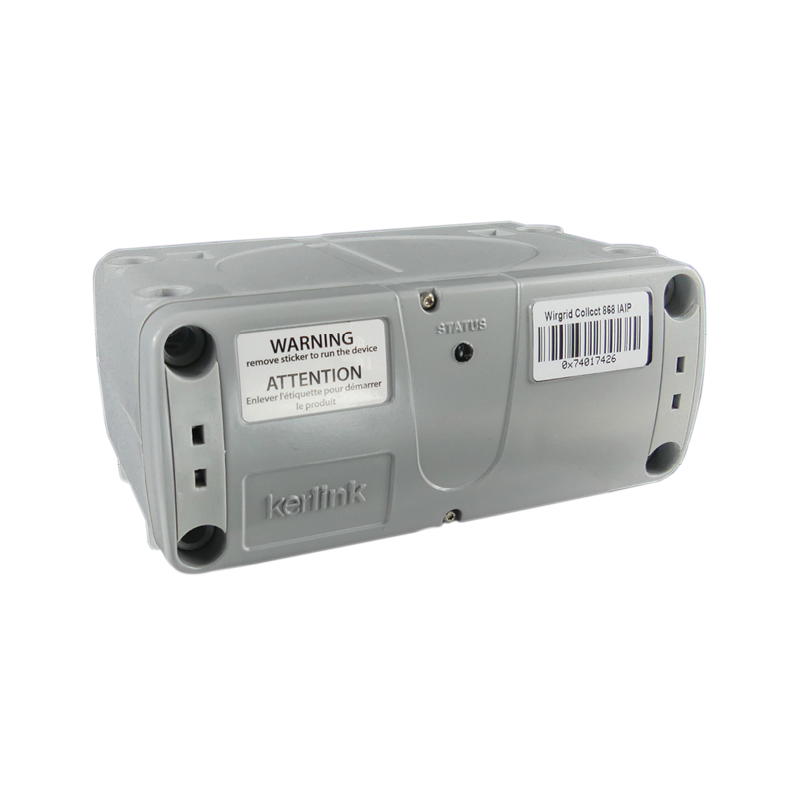

Wirgrid Collect 868

The gateway Wirgrid Collect 868 is designed for submetering applications.

It receives the meter indexes through the WmBus protocol and transmits it to an information system via the GPRS network.

Self-powered thanks to a lithium battery power supply and robust, because of a rugged case (IP 65 and IK8); the gateway Wirgrid Collect 868 can fit easily in a harsh environments: moisture, outside, shocks…

Download documentation
Ask for quote

Download documentation

Ask for quote

Wirgrid Collect 868

  • Communication equipment
  • RF communication
  • Wirgrid Collect 868
  • Backhaul GPRS
  • Customer Information System

Strengths



  • Robust and waterproof case (IP 65 – IK8) for a installation in harsh environment
  • Self-power makes installation easier (low infrastructure costs)
  • Long Range allows a high capacity of index reception

Technical features



  • Communication: GPRS, WmBUS
  • WAN protocol: EN13575 modes C, S, T, LoRa mono channel
  • Sensitivity: -110 dBm (T1 mode)
  • Bitrate: up to 56 Kbps – bidirectional
  • Autonomy: Up to 10 years
  • Range: up to 300 meters
  • Size: 138 x 80 x 58, 5 mm – Weight: 465g
  • Rugged case IK8 – IP65
  • Wide operating ranges: -20°C to +55°C
